Theory and Practice of Nuclear Resonance Vibrational Spectroscopy(NRVS)

Abstract

This section will briefly introduce the history of nuclear resonance vibrational spectroscopy (NRVS) with respect to Mössbauer spectroscopy. Then the mathematical framework for the technique is established - followed by practical aspects with an emphasis on data analysis specifically at the SPring-8 synchrotron.

A Brief History of NRVS

Mössbauer Spectroscopy relies on disconnecting the vibrational motions of the Mössbauer nucleus: recoil-free absorption and emission.1-3 The logical evolution of this idea was to realize and differentiate phonons that are coupled to the nuclear excitation.4,5 However, the resonances in Mössbauer spectroscopy are typically on the order of neV and vibrational quanta are on the order of meV. This implies a Doppler shifted source would need to move with a velocity 6 orders of magnitude faster - which is widely considered impractical.

 To observe vibrational modes, a source with high flux, high monochromation, and high tuneability is necessary. Fortunately, third generation synchrotron x-ray light sources meet these requirements.6 In the mid 1990's the first synchrotron-based vibrational Mössbauer spectra were collected concomitantly at the advanced photon source (APS) and SPring-87,8 and, the aptly named, nuclear resonance vibrational spectroscopy (NRVS) was born.

Theoretical considerations of NRVS

NRVS is, in many ways, the antithesis of Mössbauer spectroscopy. If we start with a freely recoiling atom the energy of the observed feature would be offset from the resonance by the recoil energy:

For 57Fe at a 14.4125 keV incident photon, the recoil energy is 1.956 meV. Lipkin has shown that the first moment of the vibrational excitation spectrum is the recoil energy.9

Where  is the excitation function and  is the recoil energy. This relationship gives a useful method for normalizing actual spectra. It follows that the individual vibrational features can be modeled within a harmonic approximation10 and the following section of mathematical treatment comes from Sturhahn11 as a modification of the previously established Green function formalism in a Debye framework.12

It is critical to establish the nuclear absorption cross section for the elastic process (Mössbauer) and the inelastic process (NRVS) as both contribute to the excitation spectrum. First we start with Fermi’s golden rule - the transition rate is as follows:

Where  and  represent the intermediate state and initial states respectively and both are metastates such that =||. The Dirac-delta function ensures that , the monochromatic x-ray energy, is equal to , the difference in energy between states. The interaction Hamiltonian, , relies on the nuclear current operator   and transverse vector potential of the x-ray field .

Treating the monochromatic x-ray field as a plane wave with wavevector  the transverse vector potential becomes:

Then it follows that the equation 5.4 can be rewritten as:

Where  is the Fourier image of the nuclear current operator in the center-of-mass frame. The expectation value for the interaction Hamiltonian is then:

Finally, we obtain the energy-dependent absorption cross section,   by inserting 5.7 into 5.3.

With the first term being the normalized excitation probability  which is related to Van Hove’s atomic self-correlation  function by:13

Then integration of 5.8 in all -space yields:

where we have introduced the familiar notation of , the nuclear level energy width, and  the nuclear resonant cross section.14  is again the excitation probability, and for the elastic peak is estimated as the Lamb-Mössbauer factor . Here we assume a Debye model, and the inelastic portion extends through the Debye energy, . Then for the inelastic energy-dependent cross section we find.

Sturhahn showed this model, when values for metallic 57Fe are substituted in, yields a nuclear inelastic cross section six orders of magnitude smaller than the elastic nuclear resonance and three orders of magnitude smaller than the photoelectric cross section.11 Thus arises the problem of sorting out the much smaller nuclear inelastic signal (NRVS) from the unrelated electronic scattering events.

Fortunately, the natural lifetime of the nuclear excited state (57Fe:  141 ns) is a much longer time scale than the femtosecond time scale electronic scattering events. Therefore, we can discriminate between NRVS related scattering and electronic scattering by the delay between the incident excitation pulse and measured scattering in the time domain.

The 57Fe NRVS related scattering has three primary components: the nuclear relaxation (14.4 keV), the electron ejected during internal conversion, and the kα emission from core-hole filling following internal conversion (6.4 keV). The conversion ratio for 57Fe is 8.56 and therefore, in theory, only 10.5% of the released photons after excitation are at 14.4 keV. In practice, conversion electrons themselves are typically not measured due to low detection efficiencies and high vacuum requirements.

Another implication of equations 5.10 and 5.11 is that there will be differences in penetration depth for the elastic peak compared to the inelastic region by the incident beam. This complicates determination of the spectral normalization factor () as now there is a penetration suppression factor  such that the measured intensity is:

Here, we take advantage of Lipkin’s sum rule9 and recognize that the first moment of the spectrum depends only on the recoil energy of the nuclear isotope. Reintroducing equation 5.2 with the normalization term we obtain:

Using equation 5.12 and 5.13 together we can calculate the penetration suppression factor:

Next, we can further interpret the spectrum by approximating the interatomic potential V as quadratic with respect to interatomic displacements (the harmonic approximation). The total excitation probability becomes:

Where  is the excitation probability of a phonon of order. The single phonon contribution to the probability is:

Where  is the partial vibrational density of states (PVDOS) and  is the thermodynamic beta. Here it is critical to note that from equation 5.16 the excitation probability for a single phonon event is limited by , this implies high energy single phonon features will be difficult to observe. The general excitation probability is then described with the recursive equation for :

Integration of equation 5.17 for all energy space affords the total excitation probability as a function of phonon order:

Here we can see dominance in the first order contribution to the probability, and also that for very low values of Lamb-Mössbauer factor, , we see a rise in the higher order phonon contribution. We can simplify the convolution in 5.17 to multiplication through Fourier-transformation.

Then the Fourier-image of the total energy-dependent excitation probability follows as:

Now we can extract the single phonon excitation simply by solving for .

Where  is the inverse Fourier-transform operator. This form of the function is more amenable as it is dependent on the excitation spectrum and a physical characteristic, . Now we can relate equation 5.21 to 5.16 to solve for the PVDOS  using accessible properties/observables , , and .

For a single degree of probe atom translational freedom, distributed through the lattice vibrational modes,  is normalized to unity. From equation 5.9 we see that the excitation probability depends on the dot product of the wavevector  and the atomic motion vector . However, if the sample is assumed isotropic in a form that allows sampling of all three degrees of freedom then the total isotropic PVDOS normalizes to three. Also from equation 5.9 we see the selection rule for NRVS - the dot product implies the probe atom motion must overlap with the incident photon wavevector. The term  accounts for the vibrational features on the positive side of the resonance (phonon creation) and the negative side of the elastic resonance (phonon annihilation).

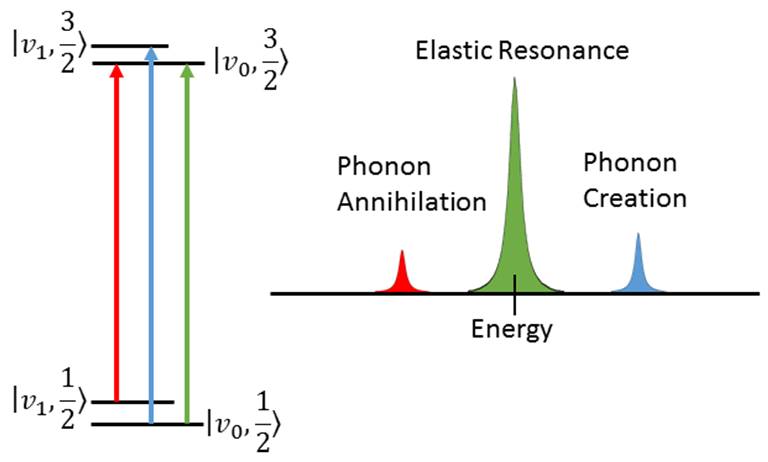

Figure 5.1 A schematic diagram for 57Fe NRVS transitions - which can involve either the formation or annihilation of phonons. The temperature dependent ratio of creation to annihilation events is determined by the nuclear ground state populations (detailed balance).

The two values are related by the Boltzmann relationship (referred to as the detailed balance). Using equation 5.23 we can fit the sample temperature based on the ratio of  and .

For a strict harmonic approximation, we can also describe the density of states by converting the approximately independent vibrational modes from normal mode coordinates to Cartesian coordinates.

Where  are the transformation coefficients called normal mode composition factors,  and  are the Cartesian coordinate vectors atomic and atomic mass; for the probe atom  and normal mode .  In this framework we can estimate the PVDOS intensity using the relationship:

Where  is the line shape function wrapping the energy terms from 5.22 and  is the projection of the normal mode composition factors onto the wavevector . Again, if we assume the system is isotropic and all three degrees of freedom can be probed by the incident photon, then we can use the expectation value:

The transformation into normal mode composition factors allows for a straightforward prescription to estimate the PVDOS intensity through normal mode analysis using density functional theory (DFT); the normal mode composition factors can be extracted from diagonalization of the Hessian force matrix used in normal mode analysis.15

Practical collection of NRVS spectra

This section will focus on the practice of NRVS with 57Fe at beamline BL9XU at the SPring-8 synchrotron - other variations can be abstracted from this description. The synchrotron storage ring must operate with a bunch pattern that is amenable to the lifetime of the isotope of interest (e.g. the storage ring must have a bunch spacing close to the nuclear lifetime: which for 57Fe is 141ns). The photon beam generated from fermion undulation is then monochromated by a high heat load monochromator (HHLM) to roughly 1eV. This is followed by a tuneable high resolution monochromator (HRM) to about 1 meV then an ionization chamber (for normalization) before encountering the sample (Figure 5.2).

Figure 5.2 Top: Schematic setup for NRVS at BL9 at SPring8 - from6. Bottom: The time structure scheme for NRVS detection at SPring-8 operating in the ‘C’ bunch mode, with 70ps pulses spaced 153ns apart, with the detector measuring from 20ns to 153ns.

Scattering is detected by a four-element avalanche photodiode (APD) array. Each of the elements sums into a time-to-amplitude converter (TAC). Discrimination between the unrelated electronic scattering from the NRVS scattering by delaying the detection acceptance window to a time starting at roughly 20ns after the incident pulse and ending before the next pulse. Further, the TAC signal-to-noise is improved through electronic anticoincidence.

Although absolute NRVS intensity is proportional to Fe atom motion, from equation 5.16 we are reminded that better signal for single phonon creation events (and inhibition of higher order phonons) can be achieved through lower temperatures. As such, NRVS is typically performed within a cryostat at very low nominal temperatures (<10K) with actual temperatures ranging from 40-100K as determined by the spectral detailed balance.

The collected spectrum is roughly equivalent to equation 5.12 which relies on equation 5.16. It is generally favorable to analyze the spectrum in terms of PVDOS to remove the 1/E intensity dependence for single phonon events (equation 5.16). Sturhahn created a program called PHOENIX that is the de facto standard to convert raw NRVS data to PVDOS (among many other features not discussed here)16 using the Fourier-log method and will be described below.17

For actual experimental data the measured intensity transforms from equation 5.12 to:

Here we have distributed the normalization constant  from 5.12 into  and  and have introduced the experimental monochromator resolution function .  Next, the resolution function must be precisely fit to the spectrum. The high statistics of the elastic peak give an obvious target to fit the resolution function, however, the contribution to the area under the elastic peak also comes from the single phonon contribution - here estimated as from 5.16 as a Debye solid - so the following function is fitted:

All c terms are variable fitting parameters. The term  allows for adjusting the position of the resonance, scales the height of the function to the elastic peak, and the term  adjusts the single phonon contribution.  The function  provides the resolution function as:

Where  is a generic shape function:

All c values are fit using a least squares minimization. Next the first moment of the spectrum is normalized to the recoil energy according to equation 5.13 determining . From the eventual deconvolution indicated in equation 5.21, we see that the Lamb-Mössbauer factor must be determined by the normalized difference in fitted elastic contribution and inelastic contribution.

Finally, PHOENIX performs the Fourier-log deconvolution17 a modification of equation 5.21:

Here  is the Fourier image of the resolution function and  is the Fourier image of the intensity spectrum. Likewise, PHOENIX calculates higher order phonons. The term  is a mollifier function that convolutes with the subtracted spectrum to limit Fourier artifacts.

The final PVDOS is calculated identically to equation 5.22.

From a practical standpoint the energy axes of multiple scans are aligned based on their position of the elastic resonance, then a calibration factor is applied. Typically, this factor can be determined by the position of three prominent peaks for [Et4N]FeCl4 (Figure 5.3).

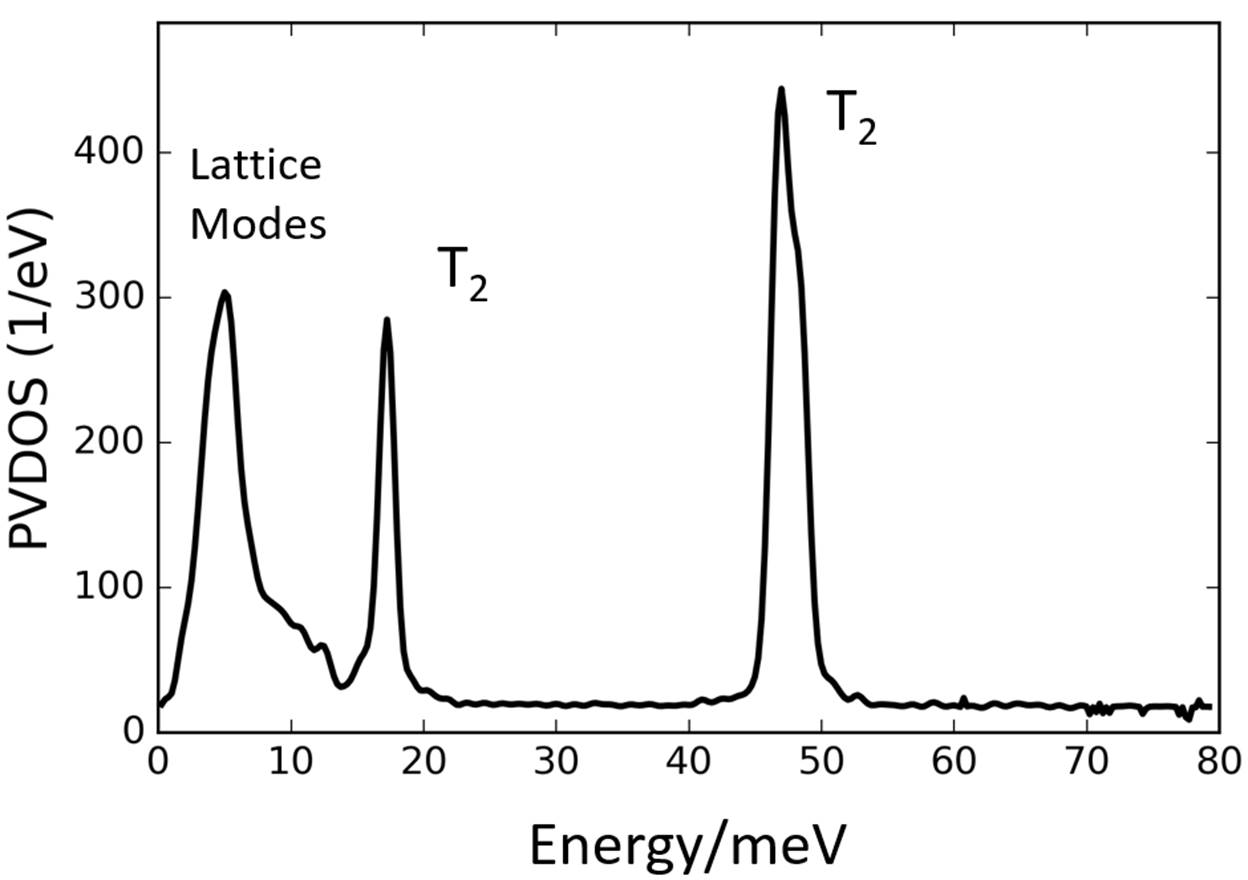

Figure 5.3 The 57Fe NRVS PVDOS for [Et4N]FeCl4. The vibrational modes are labeled. Modes that involve no Fe motion, such as E and A, are not observed in the spectrum.
